Industrial Grouts

ANCHOSINE P FIX is a two component polyester anchoring grout supplied in pre-measured quantities. The material cures quickly to give consistent, high performance anchorages.

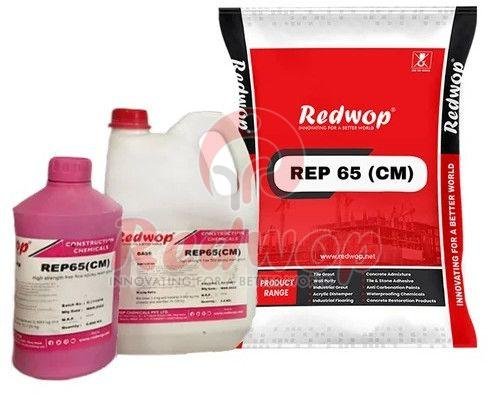

APPLICATION AREA

• To fill the gap between pipe & casing.
• To avoid longterm deterioration of pipe.
• Grouting of base plates of turbines, compressors, boiler feed pumps.

APPLICATION PROCEDURE

• Pour all the resultant liquid into a container with a capacity of 10 liters. Add all the filler provided for each product. Mix. Using a slow speed power mixer for 2 minutes or until a uniform colour is achieved in the grout.

ADVANTAGES

• To provide additional support & protection to the pipeline.
• High compressive, tensile and flexural strengths.
• Fast, convenient installation with early strength gain.
• Applicable on both vertical & horizontal direction.

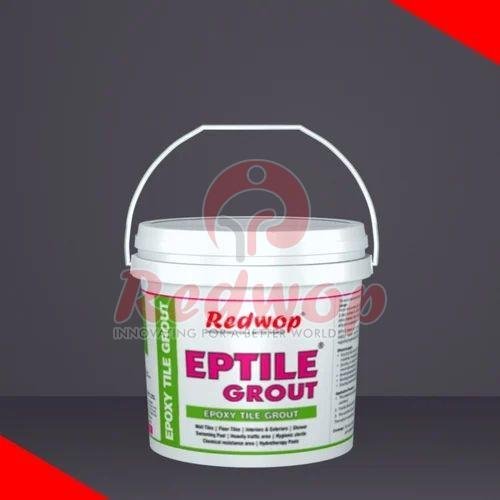

APPLICATION AREA

• Wall, floor, swimming pool tile joints
• Food and bevrage factories
• Indoor and outdoor joints

APPLICATION PROCEDURE

• Mix base, hardener and filler in given propertion than apply directly on prepared joints with the help of trowel & after 30 minutes remove the extra surplus with the help of sponge.

ADVANTAGES

• Satin free attractive joints
• Easy in maintenance and highly durable with chemical & temperature resistance properties
• High joint bond strength

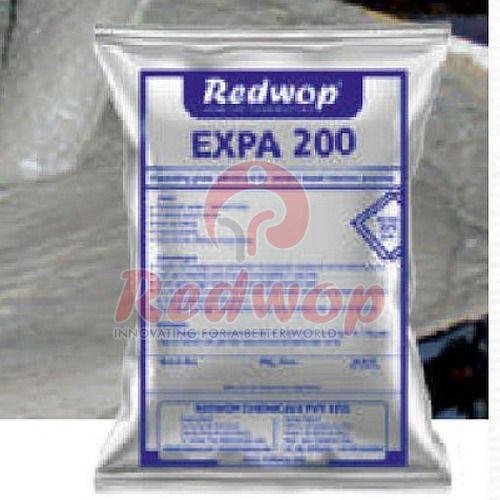

APPLICATION AREAt

• Bed plate grouing, Duct grouting
• Grouting tunnel lining
• Grouting in bridge structures
• Non-shrink infilling grouts
• Post tensioned cables

 APPLICATION PROCEDURE

• It shall be ensured that areas to be grouted are clean, sound, and then pre wetted. The unrestrained surface area of the grout must be kept ton a minimum. The selected water content should be accurately measured into the mixer.
• The cement (& sand if required) shall be slowly added to EXΡΑ 200. Mixing shall be continued for 5 minutes, making sure that a smooth even consistency is obtained.
• The grout shall be placed within 20 minutes of mixing to gain the full benefit of the expansion process.
• Usual placing or pumping procedures shall be adopted ensuring a continuous operation.

 ADVANTAGES

• Low water to cement ratio ensures low permeability and long term performance.
• Chloride free, aluminum, sulphide & sulphate, Iron free.
• Low permeability and long term durability in service

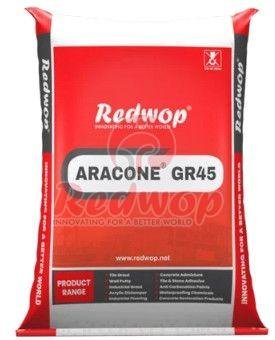

APPLICATION AREA

• In heavy duty support beneath load bearing structure
• In heavy reciprocating equipment's, compressors, pump sets, pulverizing mills, metal shearing

APPLICATION PROCEDURE

• Add water as per requirement between 4.5 to 4.75 liters per 25 kg bag. Place the grout within 20 minutes of mixing to gain full benefit of the expansion process. Start curing when grout reaches 'touch-hard' and cure properly for at least 7 days.

ADVANTAGES

• Ease in application
• Excellent adhesion to most of the exterior surfaces
• Balanced mechanical properties
• Gives excellent water Resistance

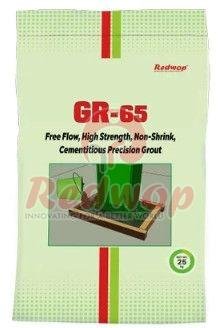

APPLICATION AREA

• Grouting of base plates of turbines, compressors, boiler feed pumps etc.
• For anchoring a wide range of fixings these include masts, anchor bolts and fence posts

APPLICATION PROCEDURE

• Make highly flow able paste mixing water powder in ratio of 0.18.

ADVANTAGES

• GR-65 have no metallic iron contain to cause staining
• As it is free flowing grout it will provide high level of contact with load bearing areas
• Gaseous expansion system compensates for shrinkage and settlement in the plastic state
• Site batching variation can be reduced as this product comes in pre packed

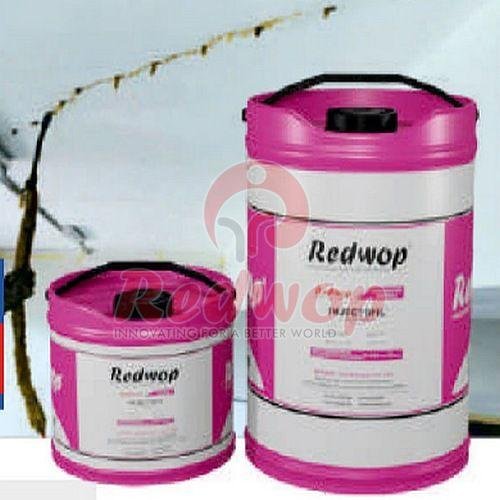

APPLICATION AREA

Injecting into cracks, honeycombs and cavities in concrete structures & structural cracks

Grouting base plates with very narrow gaps (<10mm)

APPLICATION PROCEDURE

The two components of INJECTOFIL shall be individually stirred and then mixed and injected into the nipples through a suitable injection pump exerting a uniform pressure.

ADVANTAGES

• Low viscosity can help injecting into fine cavities and narrow gaps
• It has high tensile and compressive strength which ensure long life span of structure
• High mechanical strength grout will performs even under heavy loads and stresses
• Excellent adhesive strength
• High range of chemical resistant performance

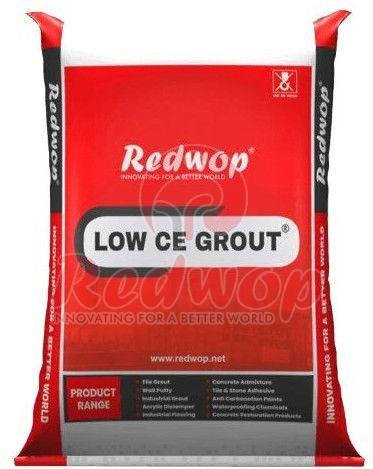

LOW CE GROUT is a one component, non-shrink, waterproof, OPC Free, Lime Based injection mortar / grout, which can be used as a fill material and to stabilize voids for a variety of repair operations, in old or Heritage structures, where the need for a reasonably waterproof fill material exists. LOW CE GROUT ensures controlled strength development and excellent bond to offer a restored substrate that can be utilized in a reasonably short time and a reasonably, waterproof and crack free protection is obtained.

Advantages

• Non-Shrink, Waterproof, Crack Resistant & OPC Free
• Breathable Lime based binder for Heritage Structures
• Reasonably waterproof and water resistant
• Needs minimal curing, air cures by lime carbonation
• Non segregating, stable
• Traditional Lime based system, incorporating modern chemistry for easy application
• Can be Customised to site requirements

Uses

• Ready to use, just mix water and apply
• Used as a injection grout, fill material or as a binder for different applications in soil stabilization or heritage repair
• As a fill material between masonry walls
• As injection grout into damaged masonry walls
• As a binder for heritage fill mortars or lime terracing

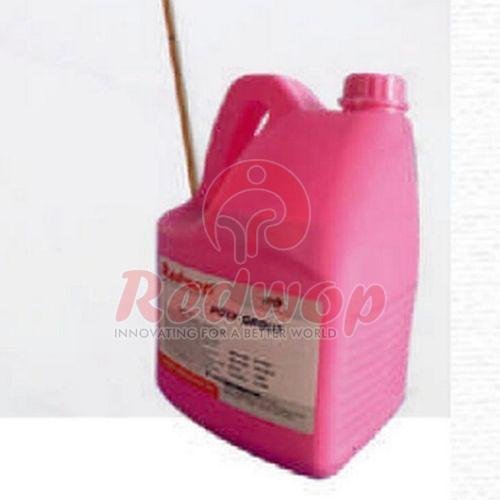

APPLICATION AREA

• Ceramic, Vitrified tile, Marble, Granite
• In exterior application to resist freezing and thawing action

APPLICATION PROCEDURE

• Mix tile grout powder to POLYGROUT and add water as per requirement. Apply the prepared mix to the tile joints with the help of trowel and remove surplus grout simultaneously.

ADVANTAGES

• Highly water resistant
• Increases grout flexibility
• Easy to clean
• Produces high performance grout
• Natural antibggtorial

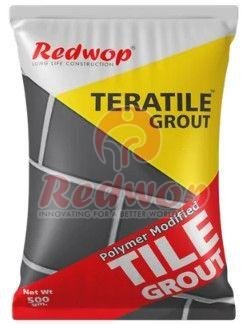

APPLICATION AREA

• Wall, floor
• Indoor and outdoor tiles / stones joints

APPLICATION PROCEDURE

• Mix powder and water in approx. W/C= 0.3 properly than apply directly on prepared joints with the help of trowel and after 30 minutes remove the extra surplus with the help of sponge. Mix 200 ml of POLY GROUT admixture to increase strength and durability of tile joints.

ADVANTAGES

• Satin free attractive joints
• Easy in maintenance and highly durable with chemical &
• temperature resistance properties
• High joint bond strength
